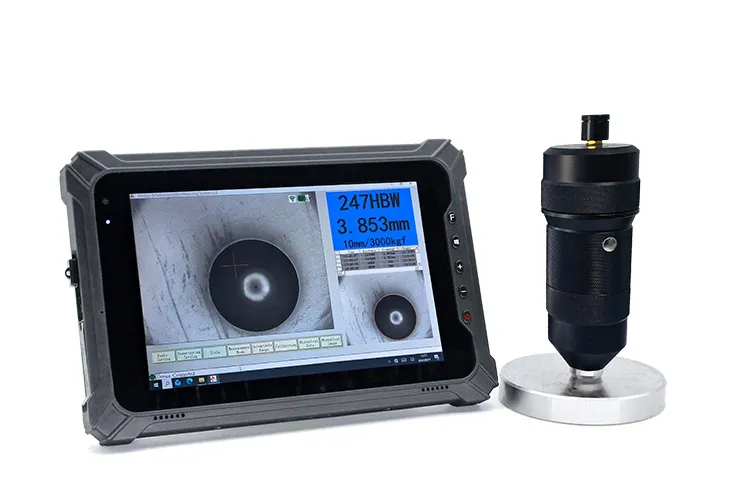

Brinell Indentation Measurement System MS-2a

The MS-2a is the second generation of the Brinell indentation measurement system. It takes pictures of brinell hardness indentation by camera, automatically identifies and measures indentation diameter, automatically calculates and directly displays Brinell hardness value. Historical measurement data is automatically stored and can be downloaded at any time. The measurement accuracy and resolution of the instrument comply with ASTM E10.

Advantages of Brinell Indentation Measurement System MS-2a

  • Clear Image. The Brinell camera adopts advanced lighting and imaging technology to make the indentation image black and white, clear edge and high contrast.

  • Quickly Identify Multiple Indentations. The leading indentation measurement image processing software has a strong ability to identify various low quality indentation.

  • High Resolution. Ultra-high resolution Up to 1 um of measurement resolution can ensure the measurement accuracy of small indentations.


Parameter of Brinell Indentation Measurement System MS-2a


MS-2a
Image Resolution1600*1200
Fild of View8mm*6mm
Test Resolution1 μm
Hardness Testing Range16~650 HBW
Diameter Testing Range2.4-6mm (10mm ball indenter)
1.2-3mm (5 mm ball indenter)
0.6-1.5mm (2.5mm ball indenter)
Diameter Accuracy±0.4%(10mm ball indenter)
±0.8%(5mm ball indenter)
±1.2%(2.5mm ball indenter)
Diameter Repeatability0.4%(10mm ball indenter)
0.6%(5mm ball indenter)
0.4%(2.5mm ball indenter)
Net Weight of Camera385g


Standard AssemblyOptional Accessories
Camera with software insideCamera with software inside
USB Disk (Software installation documents and User's Manual inside)USB Disk (Software installation documents and User's Manual inside)
2 pcs Standard Calibration Block
(10mm &5mm)
Standard Calibration Block (10mm, 5mm, 2.5mm)
Industrial Tablet PC7.26mm ball indenter testing condition
Carrying Case
