Brinell Indentation Measurement System MS-3a

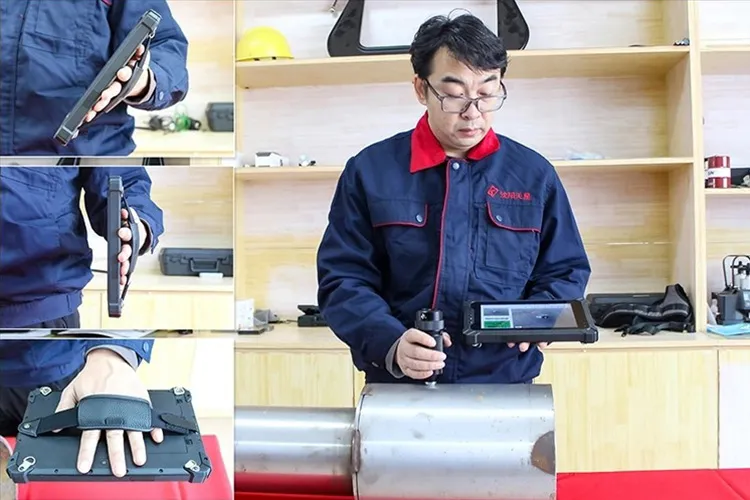

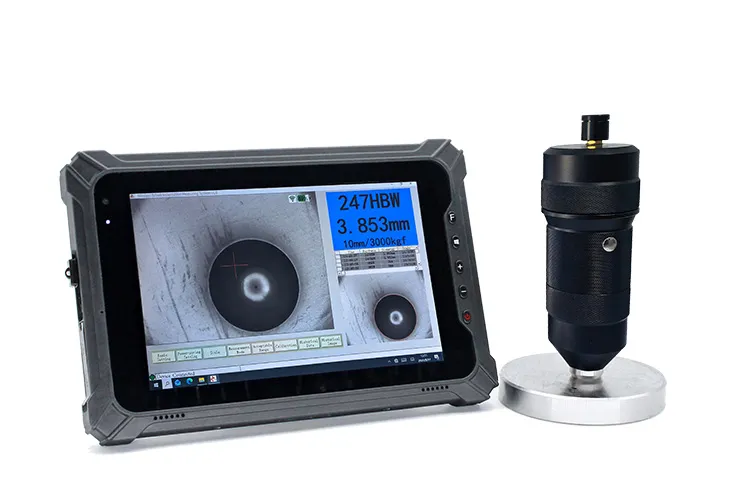

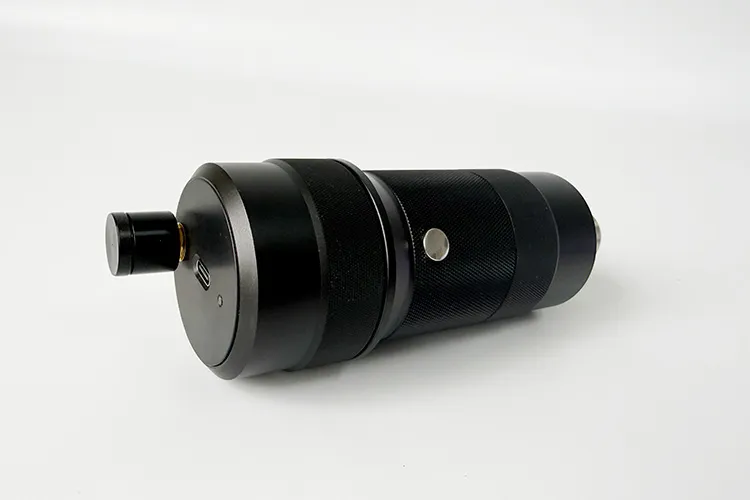

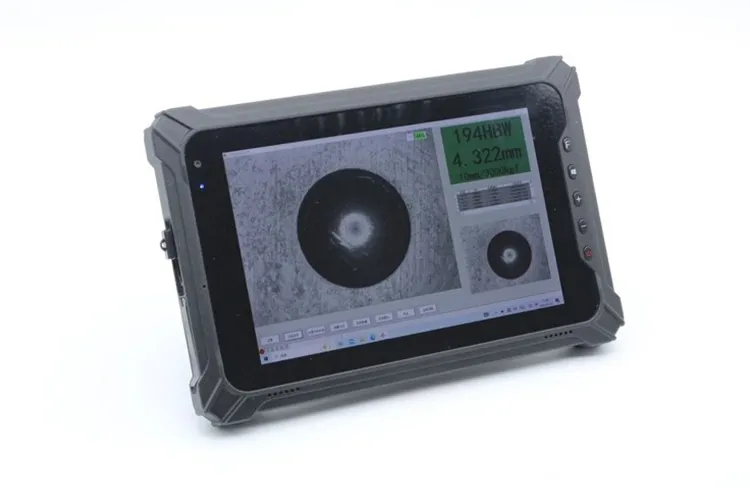

The wireless MS-3a is the third generation of automatic Brinell indentation measurement system, which consists of a wireless camera, a tablet computer, automatic indentation measurement software and two standard indentation blocks. The camera and tablet computer use wifi wireless connection, flexible and convenient operation, can be used with a variety of brinell hardness tester, accurately and quickly obtain Brinell hardness value.

Advantages of Brinell Indentation Measurement System MS-3a

  • Two Connection Modes. The wireless connection between the camera and the tablet can be in direct or network mode.

  • Good Stability. The operation mode of brinell measurement system of releasing the button to take pictures avoids the body shaking and image blur caused by pressing the button, and realizes the on-demand lighting and saves energy consumption.

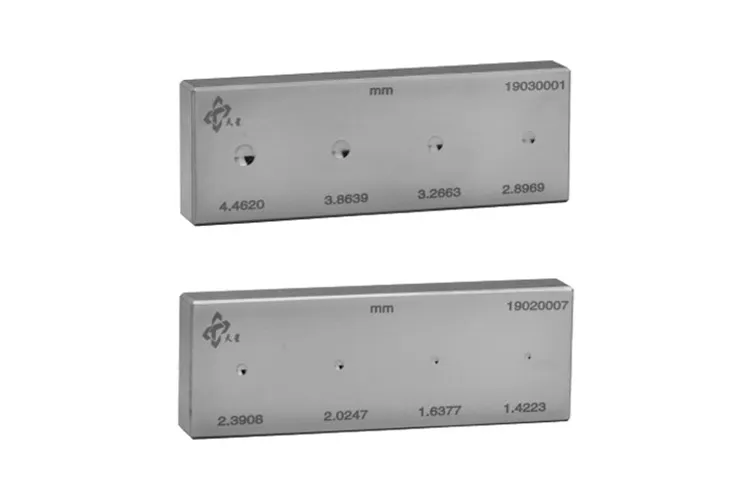

  • Traceable Test Block. Each indentation block comes with a third-party metrological calibration certificate.


Parameter of Brinell Indentation Measurement System MS-3a


MS-3a
Image Resolution1600*1200
Fild of View8mm*6mm
Test Resolution1 μm
Hardness Testing Range16~650 HBW
Diameter Testing Range2.4-6mm (10mm ball indenter)
1.2-3mm (5 mm ball indenter)
0.6-1.5mm (2.5mm ball indenter)
Diameter Accuracy±0.4%(2.4-6mm)
±0.5%(1.2-3mm)
±0.8%(0.6-1.5mm)
Diameter Repeatability0.4%(10mm ball indenter)
0.5%(5mm ball indenter)
0.8%(2.5mm ball indenter)
Net Weight of Camera375g


Standard AssemblyOptional Accessories
Wireless Camera with software insideCamera with software inside
USB Disk (Software installation documents and User's Manual inside)USB Disk (Software installation documents and User's Manual inside)
2 pcs Standard Calibration Block
(10mm &5mm)
Standard Calibration Block (10mm, 5mm, 2.5mm)
Industrial Tablet PC
Carrying Case
