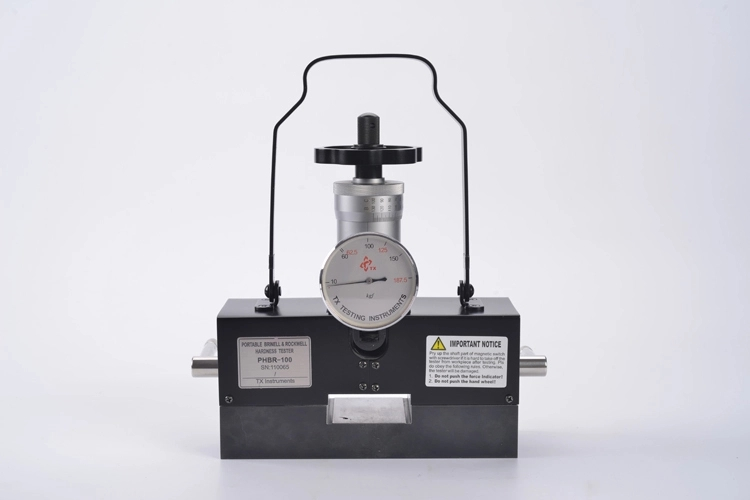

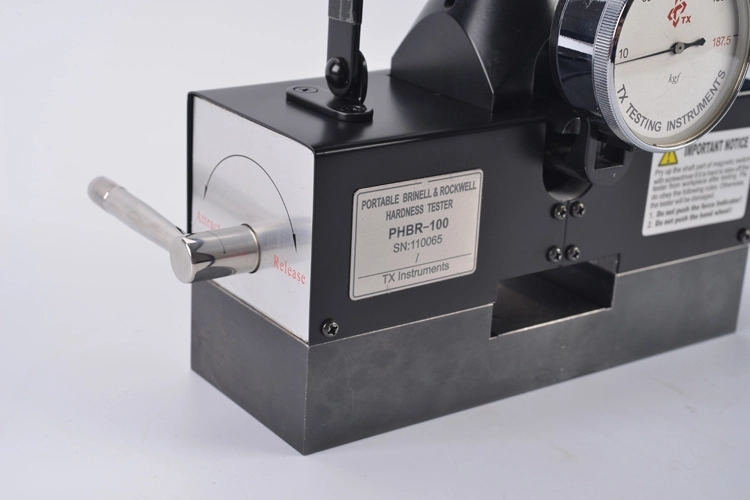

Magnetic Brinell & Rockwell Hardness Tester, PHBR-100 is the first generation of analog type magnetic Brinell & Rockwell Hardness Tester. It is mainly used to detect flat and cylindrical parts with a certain surface area. For example: steel plate, steel pipe, shaft, mold, large casting and forging, weld, surface hardening layer and some large and medium-sized heat treatment workpiece. Customized adapters are supported.
Patented Products. Magnetic hardness tester is the company's innovative products, exclusive production at home and abroad, has obtained China, the United States,Russia, Japan and other countries invention patents.
Fast and Convenient Operation. The hardness test can be completed by touching the workpiece on one side without moving the workpiece.
International Standards. Rockwell functionin line with ISO6508, ASTM E18; Brinell function comply with ISO 6506, ASTM E10, and ASTM E110.
| PHBR-100 | |
| Rockwell Initial Test Force | 10 kgf |
| Rockwell Total Test Force | 60 kgf, 100 kgf, 150kgf |
| Brinell Test Force | 187.5kgf |
| Rockwell Indenter | 120° Diamond Indenter, 1/16" Carbide Ball Indenter |
| Brinell Test Ball | 2.5mm Carbide Ball |
| Indicator Error | comply with ISO 6508, 6506, ASTM E18, E10, ASTM E110 |
| Repeatability Error | comply with ISO 6508, 6506 ASTM E18, E10, ASTM E110 |
| Test Resolution | Rockwell 0.5 HR Brinell 0.005mm (indentation diameter) |
| Test Range | 20~70 HRC, 20~100 HRB, 20~88 HRA Brinell 16-650HBW |
| Weight | 4.9 kg |
| Minimum Testing Surface | Flat: Area ≥180mm x 60mm Thickness≥ 5mm |
| Cylinder: Diameter≥60mm, Length≥200mm, Thickness≥ 8mm |

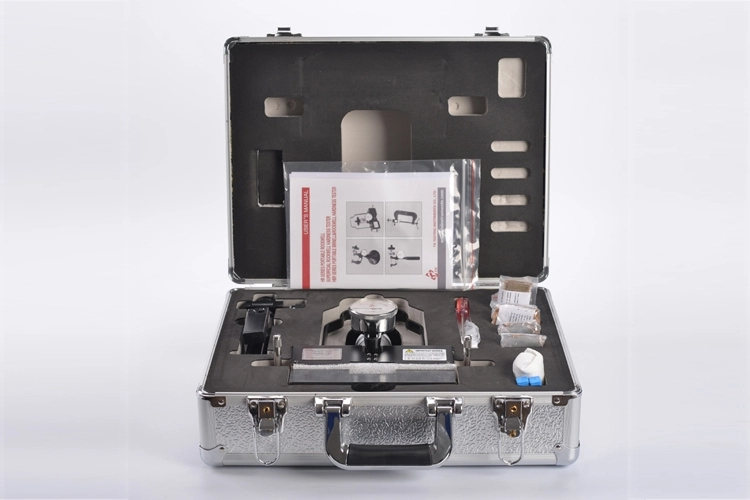

| Standard Assembly | Optional Accessories |
| Tester | 120° Diamond Indenter |
| 120° Diamond Indenter | 1/16" Carbide Ball Indenter |
| 1/16" Carbide Ball Indenter | 2.5mm Carbide Ball Indenter |
| 2.5mm Carbide Ball Indenter | Rockwell Hardness Block (HRC-high, HRC-low, HRB) |
| 3 pcs Rockwell Hardness Block | 1 pc Brinell Hardness Block (HBW2.5/187.5) |
| 1 pc Brinell Hardness Block (HBW2.5/187.5) | Iron Seat / Base |
| 40X Microscope | Special Adapter (customized by required size) |
| Iron Seat / Base | 40X Microscope |
| V Adapter (4 pcs) | V Adapter |
| Carrying Case | Brinell Indentation Measurement System MS-1b |
